GARAGE DOOR
CATALOG

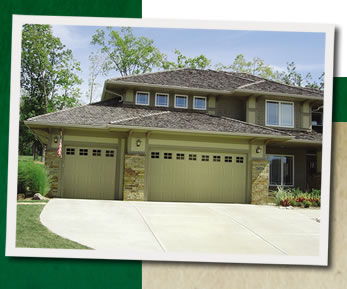

410
Inquiry Basket
Product Code:410

Features:

Nominal 24 gauge hot dipped galvanized steel construction with hemmed inside return rail.
1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
19 gauge hot dipped galvanized steel stiles include rolled safety edge.
Stiles attached with rivets to provide superior strength when compared to common sheet metal joining methods
Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip.
Model 411 and 451 are insulated (R value: 6.85) with CFC Free expanded polystyrene with a high impact plastic back cover

Door Widths

TRADITIONAL RAISED Panels

Heights Available :
6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

8', 9'
10'
12'
14', 15'
16', 17', 18'
20'



line

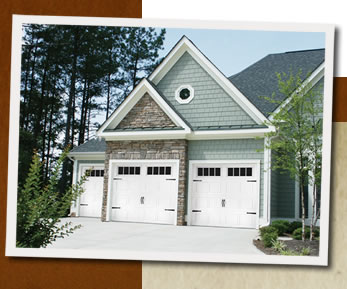

430
Inquiry Basket
Product Code:430

Features:

Nominal 24 gauge hot dipped galvanized steel construction with hemmed inside return rail.
1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
19 gauge hot dipped galvanized steel stiles include rolled safety edge.
Stiles attached with rivets to provide superior strength when compared to common sheet metal joining methods
Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip.
doorLink™ designs are protected by US patent #D487521.
Model 431 is insulated (R value: 6.85) with CFC Free expanded polystyrene with a high impact plastic back cover

Door Widths

Grooved panels

Heights Available :
6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

8', 9', 10'
16', 17', 18'



line

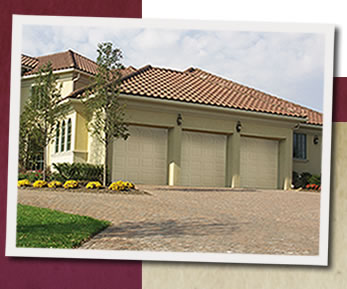

470
Inquiry Basket
Product Code:470

Features:

Nominal 24 gauge hot dipped galvanized steel construction with hemmed inside return rail.
1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
19 gauge hot dipped galvanized steel stiles include rolled safety edge.
Stiles attached with rivets to provide superior strength when compared to common sheet metal joining methods.
Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip.
Model 471 is insulated (R value: 6.85) with CFC Free expanded polystyrene with a high impact plastic back cover.
doorLink™ designs are protected by US Patent #D500870

Sizes Available:

Door Widths

Panels Wide

Heights Available :
6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

8', 9'
10'
12'
14', 15'
16', 17', 18'
20'



line

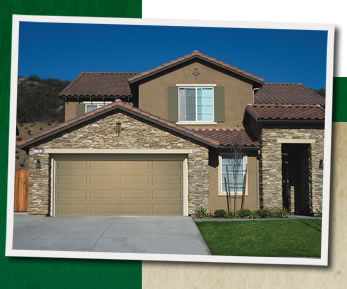

490
Inquiry Basket
Product Code:490

Features:

Nominal 24 gauge hot dipped galvanized steel construction with hemmed inside return rail.
1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
19 gauge hot dipped galvanized steel stiles include rolled safety edge.
Stiles attached with rivets to provide superior strength when compared to common sheet metal joining methods
Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip.
Model 491 is insulated (R value: 6.85) with CFC Free expanded polystyrene with a high impact plastic back cover

Door Widths

Panels Wide

Heights Available :
6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

8', 9'
10'
12', 14'
15', 16', 17', 18'
20'



line
