GARAGE DOOR
CATALOG

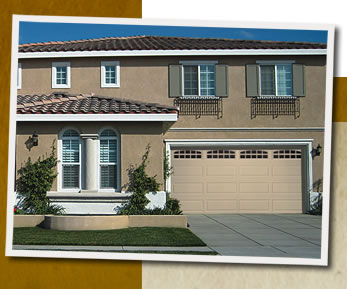

3690
Inquiry Basket 		Product Code：3690

Features:

  • Sandwich type construction with CFC free expanded polystyrene insulation pressure bonded between two sheets of 26 gauge hot dipped galvanized steel with a 10.25 R value.
  • 1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
  • 20 gauge hot dipped galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts and step plates.
  • Rigid aluminum retainer provides added strength while securing replaceable
    U-shaped bottom weatherstrip.
  • Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.

Door Widths

Panels Wide

Heights Available :
6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

8', 9'
10'
12', 14'
15', 16', 17', 18'
20'



line

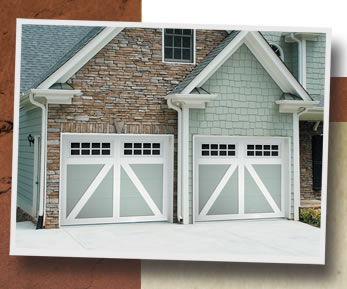

Carriage Collection
Inquiry Basket 		Product Code：Carriage Collection

Features:

  • 2" Thick steel sections with composite overlay.
  • Corrosion and rust resistant hot-dipped galvanized steel skins.
  • R Value = 10.25.
  • Overlay Bonded to steel section to give the look of a wood carriage house door.
  • Virtually Maintenance Free

Window Options:

All single car garage door styles are also available in a double car style.

Window Style

Panel Style
line

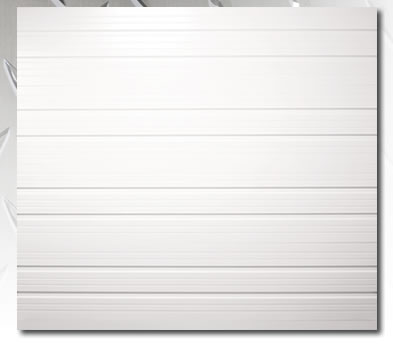

4400 / 4500
Inquiry Basket 		Product Code：4400 / 4500

Features:

  • Hot Dipped galvanized steel construction with hemmed inside return rail .
  • 1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
  • Stiles attached with rivets to provide superior strength when compared to common sheet metal joining methods.
  • 17 gauge hot dipped galvanized stiles.
  • Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
  • Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip.
  • Model 4400 features smooth finish.
  • Model 4500 features pebble grain finish.
  • Models 4401 and 4501 are insulated (R value: 6.85) with CFC Free expanded polystyrene with a high impact plastic back cover.

Sizes Available:
Door Width
 Section Height

8'2"
9'2"
10'2"
12'2"
14'2"
16'2"
18'2"
20'2"
22'2"
24'2"


18"
21"
24"


line

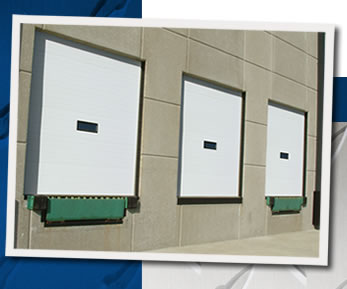

6500
Inquiry Basket 		Product Code：6500

Features:

  • 2" Thick sandwich construction with expanded polystyrene core provides an R value of 10.25
  • 1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel.
  • Constructed with nominal 24 gauge exterior and 26 gauge interior skins from hot dipped galvanized steel. Stucco embossed with 4 minor ribs.
  • 20 gauge hot dipped galvanized steel hinge plates run the full height of section at each hinge location to facilitate the attachment of hinges, handles and struts..
  • Sections include tongue and groove meeting rails for superior strength and better sealing against wind, rain and snow.
  • Rigid aluminum retainer provides added strength while securing replaceable u-shapped bottom weatherstrip

Sizes Available:

Door Width
 Section Height

8'2"
9'2"
10'2"
12'2"
14'2"
16'2"
18'2"
20'2"
22'2"
24'2"



line
